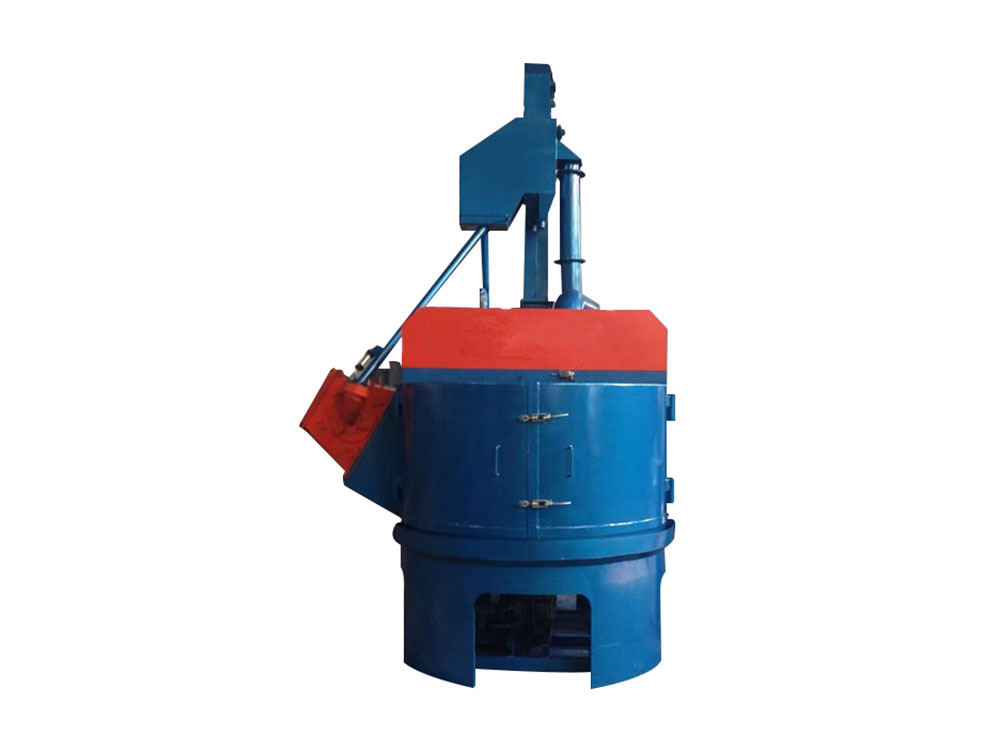

Rotary shot blasting machine is mainly suitable for surface cleaning of small and medium-sized workpieces, especially for surface strengthening treatment of gears, shafts, springs, tie rod sintered parts, etc. It is widely used in casting and automobile manufacturing, with high production efficiency and good sealing effect. The utility model has the advantages of compact structure, convenient loading and unloading parts and high technical content. Features: First. The rotary shot blasting machine is mainly composed of chamber body, turntable, transmission system, separator, hoist, pill blasting device, blasting machine, etc., a high-speed rotating blasting machine at the top of the chamber. The best orientation of the workpiece is ejected. When the workpiece is transferred out of the chamber, the cleaning effect can be directly seen for the next step. Secondly, the drive system drives the scraping plate to rotate, and the shot sand is sent to the lower part of the hoist through the flow pill tube, and then the separator is separated by the hoist, and the intact projectile is continuously passed through the pill tube and the gate for the blasting machine. Use, crush the projectiles and dust and then enter the other corresponding pipes separately for secondary separation. Third, the rotary blasting machine transmission mechanism drives the friction wheel by the cycloidal pinwheel reducer, and the friction mechanism is driven by a clutch mechanism and the turret to make the turret rotate smoothly. When the workpiece is turned out of the room, it can be used to directly flip the adjusted and cleaned workpieces; at any time, according to the difference of the workpiece to be cleaned and the difficulty of loading and unloading the workpiece, the clutch handle is pulled to disengage the friction wheel and the turntable, that is, the turntable Stop and adjust the workpiece and change the handle position. The turntable starts to rotate.
Rotary Table / Disc
Table Diameter: 1400-1800mm
Work Pieces Dimension: Min 600*200mm
Table Load Capacity: Min 300kg
Table Power: 14.5 - 23kw
Technical Parameter Rotary table shot blasting machine
